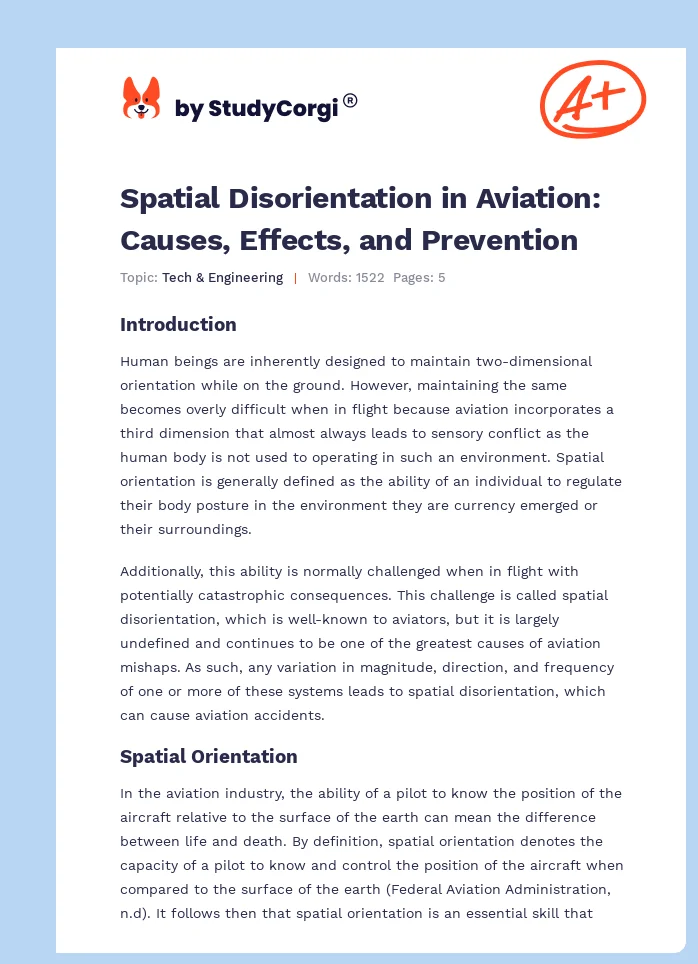

Introduction
Human beings are inherently designed to maintain two-dimensional orientation while on the ground. However, maintaining the same becomes overly difficult when in flight because aviation incorporates a third dimension that almost always leads to sensory conflict as the human body is not used to operating in such an environment. Spatial orientation is generally defined as the ability of an individual to regulate their body posture in the environment they are currency emerged or their surroundings.
Additionally, this ability is normally challenged when in flight with potentially catastrophic consequences. This challenge is called spatial disorientation, which is well-known to aviators, but it is largely undefined and continues to be one of the greatest causes of aviation mishaps. As such, any variation in magnitude, direction, and frequency of one or more of these systems leads to spatial disorientation, which can cause aviation accidents.
Spatial Orientation
In the aviation industry, the ability of a pilot to know the position of the aircraft relative to the surface of the earth can mean the difference between life and death. By definition, spatial orientation denotes the capacity of a pilot to know and control the position of the aircraft when compared to the surface of the earth (Federal Aviation Administration, n.d). It follows then that spatial orientation is an essential skill that pilots must possess to be able to fly safely and effectively.

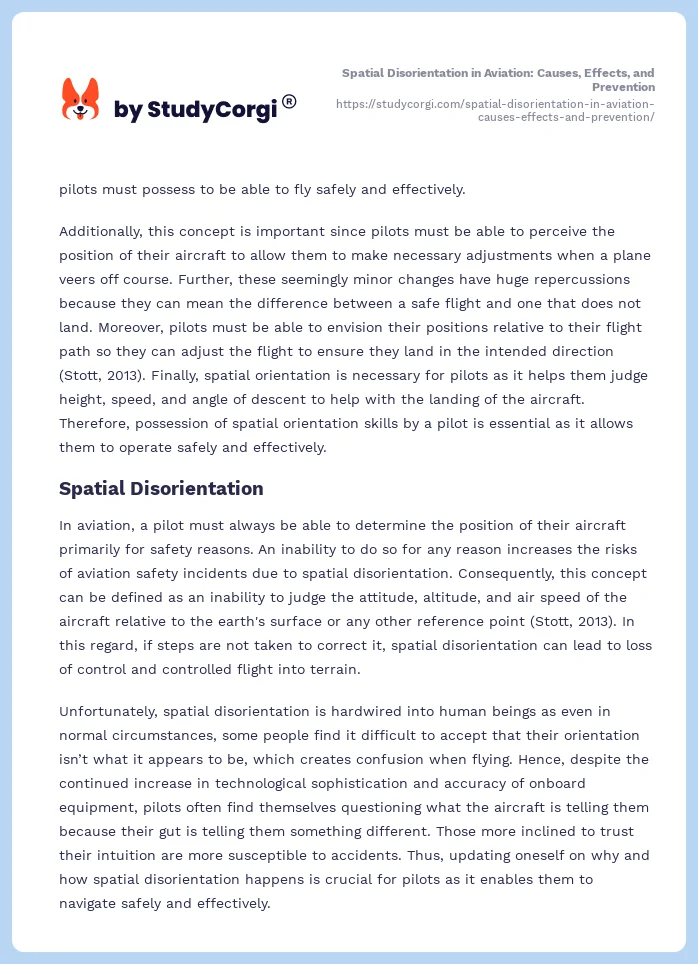

Additionally, this concept is important since pilots must be able to perceive the position of their aircraft to allow them to make necessary adjustments when a plane veers off course. Further, these seemingly minor changes have huge repercussions because they can mean the difference between a safe flight and one that does not land. Moreover, pilots must be able to envision their positions relative to their flight path so they can adjust the flight to ensure they land in the intended direction (Stott, 2013). Finally, spatial orientation is necessary for pilots as it helps them judge height, speed, and angle of descent to help with the landing of the aircraft. Therefore, possession of spatial orientation skills by a pilot is essential as it allows them to operate safely and effectively.
Spatial Disorientation
In aviation, a pilot must always be able to determine the position of their aircraft primarily for safety reasons. An inability to do so for any reason increases the risks of aviation safety incidents due to spatial disorientation. Consequently, this concept can be defined as an inability to judge the attitude, altitude, and air speed of the aircraft relative to the earth’s surface or any other reference point (Stott, 2013). In this regard, if steps are not taken to correct it, spatial disorientation can lead to loss of control and controlled flight into terrain.
Unfortunately, spatial disorientation is hardwired into human beings as even in normal circumstances, some people find it difficult to accept that their orientation isn’t what it appears to be, which creates confusion when flying. Hence, despite the continued increase in technological sophistication and accuracy of onboard equipment, pilots often find themselves questioning what the aircraft is telling them because their gut is telling them something different. Those more inclined to trust their intuition are more susceptible to accidents. Thus, updating oneself on why and how spatial disorientation happens is crucial for pilots as it enables them to navigate safely and effectively.
To ascertain their spatial orientation, pilots use the instruments onboard an aircraft, which offer them primary information regarding attitude, altitude, and other metrics. However, being subject to motion, speed, forces, and variations in gravity affects a pilot’s orientation because they are not familiar with such changes. Consequently, this can lead to a forced perception of orientation and relative movement, creating spatial disorientation (Tsang, 2009). The occurrence of spatial disorientation in most cases is due to no visible horizon, darkness, onboard instrument malfunction, or fatigue by the pilot.
Type of Spatial Disorientation
There are several types of spatial disorientation that human beings can be susceptible to during flights, but the major ones are two. The first one is somatographic, which denotes a phenomenon where a pilot experiences linear acceleration or deceleration as climbing or descending creating a dangerous illusion that could see a pilot crash a plane. The second is a type of somatogyral, which describes an experience where one cannot detect or perceive movement in a different direction to reality (Tsang, 2009). Recovering from these types of disorientation necessitates a pilot to always scan, read, and trust information from onboard navigation instruments. Additionally, other steps can be taken to ensure that pilots can accurately perceive their positions relative to the surface of the earth to avoid mishaps.
Examples of Spatial Disorientation and Their Effects on Pilots
Spatial disorientation can present itself in several ways, including but not limited to inversion illusion and head-up and head-down illusion. An example of an inversion illusion is when a plane climbs and is followed by a sudden leveling off while it maintains high speed. The combination of acceleration and leveling off creates an illusion of an inverted flight. In this case, a pilot may attempt to pitch the aircraft downwards to correct the perceived inverted position, which could lead to a catastrophic rapid descent.
Another example of spatial disorientation is the head-up and head-down illusion which occurs as a result of linear acceleration of deceleration during level flights. This creates an illusion whereby the pilot perceives the aircraft’s nose as pitching up or down (Landman et al., 2022). Like in the previous example, this perception prompts the pilot to take corrective actions. These steps could push the aircraft down in the case of a head-up illusion or lead to its stalling during low-speed final approaches in the case of a head-down illusion.
The effects of these scenarios on pilots are diverse, but they generally include the loss of situational awareness, heightened risks of accidents, confusion, and incorrect control inputs. Disorientation of a pilot leads to a loss of situation awareness making it difficult for them to accurately assess their positions. Additionally, it increases the chances of aviation accidents, especially in conditions of limited visibility when a pilot has to make complex maneuvers (Landman et al., 2022). Finally, pilots experiencing spatial disorientation may become confused, leading to a series of events that eventually result in incorrect control inputs.
Ways to Prevent Spatial Disorientation
There are several ways to prevent spatial disorientation and ensure maximum safety for passengers. These include training and simulation, instrument proficiency, situational awareness, and trust in the instruments. One of the surest ways to prevent this common phenomenon is to ensure pilots undergo regular training and simulation. Simulations with devices such as the Virtual Reality Spatial Disorientation Demonstrator and Barany chairs ensure that pilots understand the standard operations procedures when they encounter such problems when going about their work (Landman et al., 2022).
Another strategy is ensuring instrument proficiency for anyone who is licensed to fly any type of aircraft. Such proficiency ensures that pilots can navigate and safely reach their destination even in conditions of limited visibility while relying on limited visual cues.
The third strategy is to encourage situational awareness among pilots. During training, a pilot must be made aware of the perils of flying in deteriorating weather conditions. They must also be aware and taught of other scenarios that can result in spatial disorientation. Such education will prepare them to respond to such circumstances or avoid situations prone to spatial disorientation (Landman et al., 2022). Finally, pilots must always trust the onboard equipment and instruments and avoid the urge to rely on their intuition.
Training, Technology, and Spatial Disorientation
Training and technology play an indispensable role in reducing or eliminating spatial disorientation. In terms of training methods, various simulation tools ensure that pilots are better equipped to handle such situations when they arise. Additionally, instrument proficiency is emphasized so that pilots develop trust in their onboard instruments rather than relying on intuition in times of uncertainty. Further, education on the subject of spatial disorientation is emphasized as a means to teach pilots about the different types of illusions they can expect to encounter (Landman et al., 2022). Technological applications such as spatial disorientation demonstrators, flight instrumentation and automation, virtual reality training, and flight data monitoring ensure that the negative effects of spatial disorientation are mitigated.
Conclusion
Preventative measures can also be instituted to reduce instances of spatial disorientation. These measures include strict adherence to regulatory guidelines, especially as they relate to the training of pilots on spatial disorientation. The second preventative measure is ensuring that pilots follow standards and guidelines to the core (Landman et al., 2022). This would reduce instances of going with the gut feeling rather than trusting the instruments in the plane.
Finally, continuous research on this topic is necessary to understand all the reasons why pilots experience spatial disorientation. Finally, measuring spatial disorientation can be achieved through a controlled environment, which can help gauge a pilot’s response during such incidents. Additionally, an analysis of the data obtained during such tests would provide further insights. In conclusion, spatial orientation and disorientation in an aviation environment determine whether a flight is safe and effective.
References
Federal Aviation Administration. (n.d.). Spatial disorientation in flight. Web.
Landman, A., Kalogeras, D., Houben, M., & Groen, E. L. (2022). Orientation comes first: Becoming aware of spatial disorientation interferes with Cognitive Performance. Human Factors: The Journal of the Human Factors and Ergonomics Society. Web.
Stott, J. R. (2013). Orientation and disorientation in aviation. Extreme Physiology & Medicine, 2(1). Web.
Tsang, P. S. (2009). Principles and practice of Aviation Psychology. CRC Press.
