Equipment Overview
While researching electrical equipment, my interest was piqued by the circuit breaker manufactured by EATON, shown in Figure 1. Such switches are used in the chain for protective purposes, as they automatically cut off the supply of electric current in the event of a problem, such as a short circuit or overload of the mains.
Protective Function and Specifications
The protective function extends to appliances and equipment connected to the mains, as well as in the case of fires and related overcurrent hazards. The circuit breaker in the search is a two-pole type, capable of interrupting current flow between the live and neutral phases. According to the specifications, the maximum rated current that can flow through the breaker is 200 A (EATON 1). Increasing this value can be detrimental to the circuit breaker’s effective operation. It will most likely result in either equipment failure or an inability to flow current through the circuit.
For short-circuit scenarios, the stated maximum breaking capacity is 25 kAIC, meaning the unit can trip at a short-circuit current of 25,000 amperes. Additionally, the equipment specifications indicate that the circuit breaker operates at a rated voltage of 120/240V, which is typical in North America (USA, Canada), where split-phase systems are permitted. The equipment’s versatility is ensured by its extensive range of wire thicknesses, up to 300 kcmil.

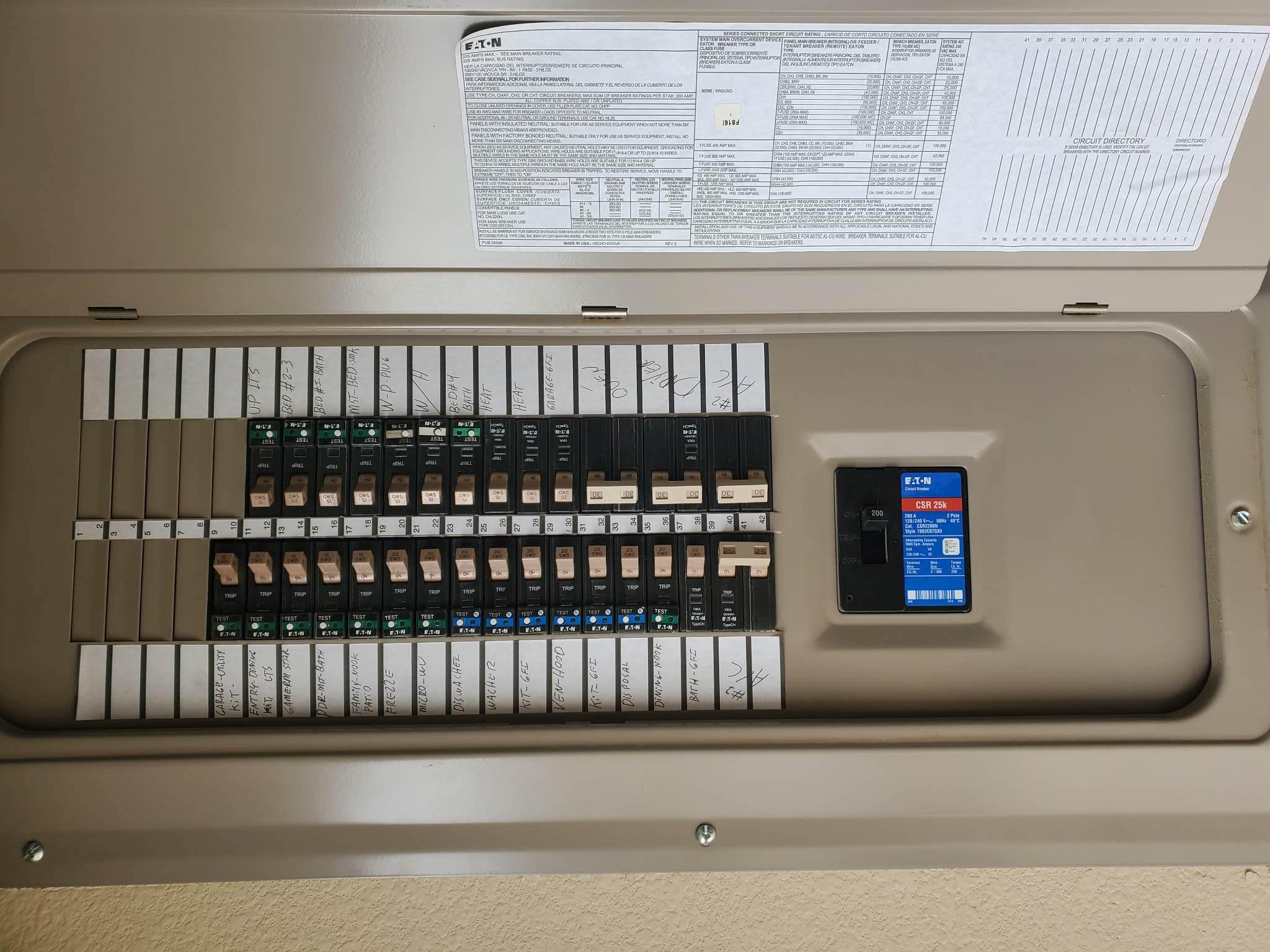

As shown in Figure 1, the EATON circuit breaker consists of a series of circuit breakers connected in series, each responsible for a particular section of the circuit. For example, the device shown separately controls the circuit in the bedroom, the garage, the bathroom, and many other associated circuits. Additionally, a master switch located on the right side of the device controls the entire device’s operation. If such a device had only one switch controlling the entire circuit, it would not be able to localize the problem or the short-circuit location and would cut off power to the whole house at once. It would perform its protective and preventive functions, but it would not work as efficiently or practically as with multiple switches.
In the event of a short-circuit or an overload in a circuit, such as when a compelling piece of electrical equipment in the garage is plugged in or when water runs into the live phase of a bathroom outlet, only the switch responsible for the particular problem section of the circuit should trip in the CSR 25k. This means the other circuit sections will continue to function normally and will not trip.
The CSR 25k also features a large switch on the right side, which controls the entire unit. When it is off, all internal circuits are open, which means no power is going to the house. This can be particularly useful when repair work is needed or in the event of a home emergency, such as a flood or fire.
